Bike Geometry

• Bottom bracket drop [mm]: 25 mm
• Chain stay length [mm]: 460 mm
• Fork offset [mm]: 550 mm
• Fork total length [mm]: 44 mm
• Head tube angle: 65 degrees
• Head tube length [mm]: 120 mm
• Reach [mm]: 450 mm
• Stack [mm]: 615 mm
• Seat tube angle: 76 degrees
• Seat tube length [mm]: 430 mm
• Top tube length [mm]: 606 mm
• Wheelbase [mm]: 1230 mm

Brake system

• Brake Front Description: Shimano, Freno a disco idraulico, M4100 4 pistons, 203 mm
• Brake Rear Description: Shimano, Freno a disco idraulico, M4100 2 pistons, 203 mm
• Brake Rear Mount: Post Mount
• Brake Lever Description: Shimano, BL-M4100
• Brake Rotor Description: Shimano, SM-RT30 203 mm, Centerlock

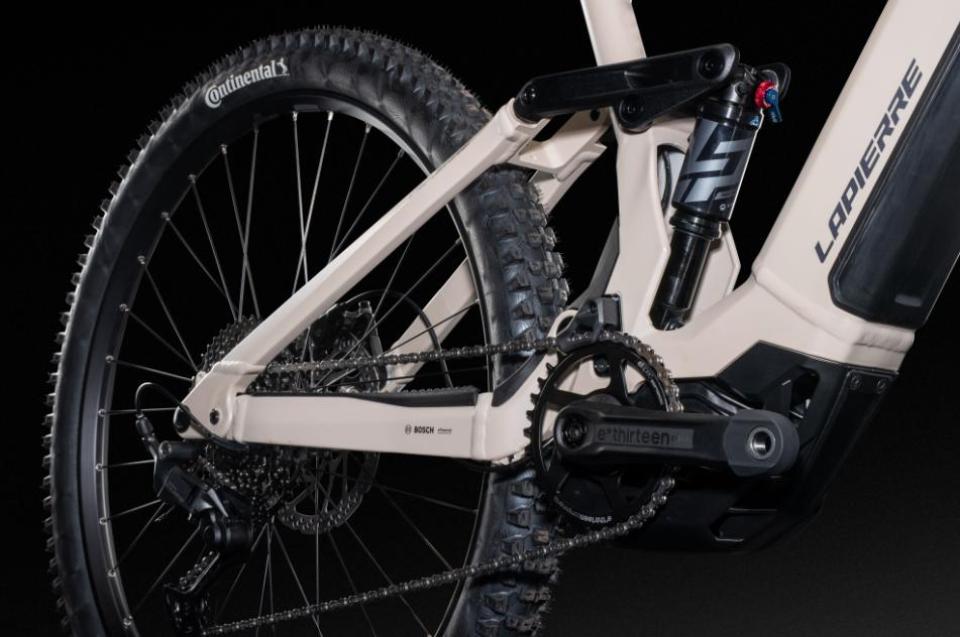

Drivetrain

• Cassette Description: Shimano, Cassette, CUES CS-LG400-11, HG
• Cassette Teeth: 11-50T
• Chain Description: Shimano, Chain, CUES LG500 9/10/11s
• Crank Arm length: 160
• Crankset Description: E Thirteen, Helix Core + E13 Helix Core steel chainring 55CL
• Crankset Teeth: 34T
• Crankset Type: single
• Derailleur Rear Description: Shimano, CUES U6000 10/11s Shadow+
• Gear Description: Shimano, Derailleur
• Number Of Gears: 11
• Pedal Description: XLC, by VP
• Shifter Left Description: Shimano, Triggershift, CUES U6000 11s
• Shifter Right Description: Shimano, Triggershift, CUES SL-U6000-11R

E-bike components

• Battery Description: Bosch, Powertube Horizontal 800Wh
• Battery Capacity: 800 Wh
• Battery Location: Downtube
• Charger Description: Bosch, Quick Charger, Charger 2A 220-240V
• Display Description: Bosch, Kiox 300
• Motor Description: Bosch, Performance line CX
• Motor Torque [nm]: 85 Nm
• Motor Location: Center

Frame and more

• Framesize Convection: M
• Max loadable weight (KG): 120 kg

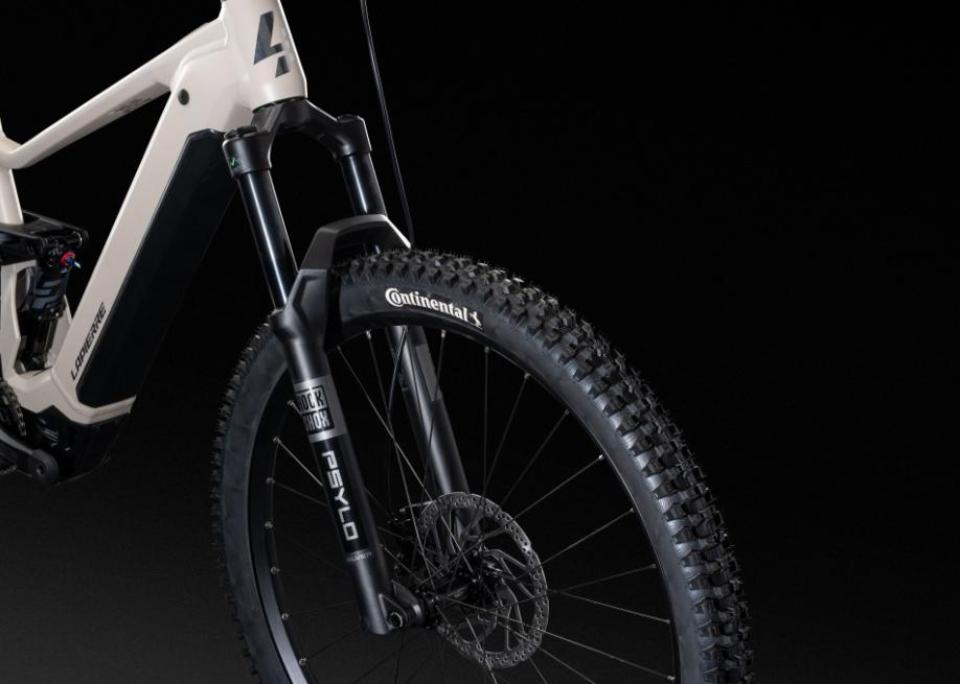

• Front Fork Description: Rockshox, Psylo Silver RC 15x110 29" 140 mm
• Front Fork Type: Suspension
• Frame Description: HIGH, Alluminio, Uomo
• Shock Description: Lapierre, Shock 185x50 mm Trunnion/15x8 mm
• Suspension Type: Fully
• Travel Front: 140 mm

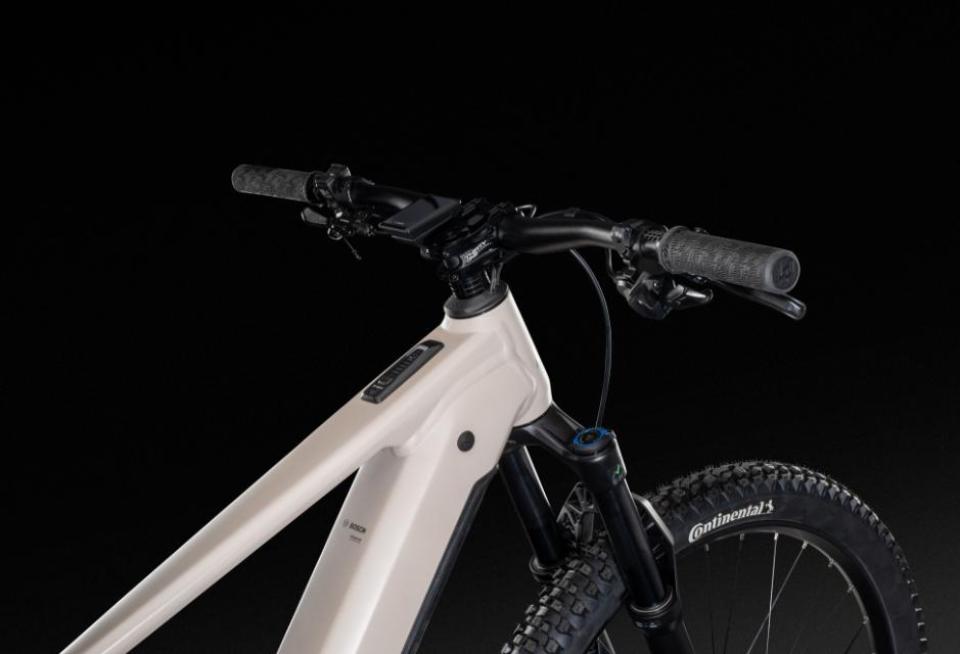

Handlebar and Saddle

• Handgrip Description: Lapierre, grips small diameter
• Handlebar Description: Lapierre, Flat bar, Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
• Handlebar Diameter: 31.8 mm
• Handlebar Material: Alluminio
• Handlebar Rise: 15
• Handlebar Width: 760 mm
• Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
• Saddle Description: Selle Royal, Vivo
• Seatpost Description: JD, Dropperpost, YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
• Seatpost Material: Alluminio
• Seatpost Travel (mm): 130 mm
• Stem Description: Lapierre, Thirty One alloy, 0°, Ø: 31.8 mm, L: 45 mm
• Stem Length: 45 mm

Wheels and wheel components

• Hub Front Description: Shimano, TC500, boost 15x110, 32H Centerlock
• Hub Rear Description: Shimano, TC500, boost 12x148, 32H Centerlock, HG driver
• Rim Description: Ryde, Disc30 32H, 30-622 Black Anodized
• Rim Rear Description: Ryde, Disc30 32H, 30-622 Black Anodized
• Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
• Tyre Rear Description: Continental, Xynotal R Enduro Soft
• Wheelsize Description: 29, 29
• Wheel Size: 29

•
